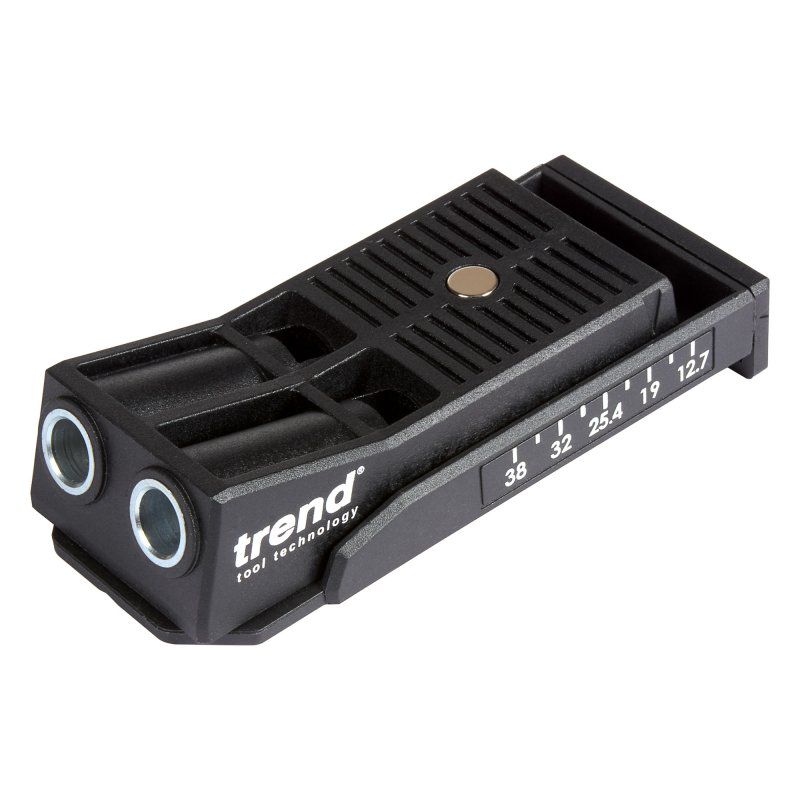

TREND PH/JIG/C POCKET HOLE JIG TWIN

Adaptable and portable ÔGo AnywhereÕ Pocket Hole Jig for new projects, strengthening and repair work in materials from 12.7mm up to 38mm thick
1.Twin Pockets Ð Can be used for drilling two holes for increased strength or single holes for narrower components
2.Full Length Hardened Drill Guides Ð For precision pockets and long life span
3.Wide Material Dimensions Range Ð Covers stock from 12.7mm to 38mm
4.Unlimited Material Width Ð Can be easily relocated across any material width for infinite pocket hole positioning
5.Multi-Function Ð Ideal for making repairs to existing work, constructing smaller projects and heavy duty builds
6.Adaptable - for multiple jointing styles and applications
7.Compact and Portable Ð Fits easily into a pocket or tool pouch, always readily to hand
8.Fast Setup Ð Easy adjustments for different component sizes
9.Quick Set Drill and Timber Setting Ð Sliding Set Up Gauge sets the correct drilling depth and jig position for different material thicknesses
10.Trend Snappy Chuck Compatible Ð supplied with high quality HSS stepped drill and No2 square Drive bit with quick change hex shanks
11.Ready To Go Ð Supplied complete with HSS Stepped drill, 150mm Square Drive driver bit and selection of screws
12.Magnetic Clamp plate Ð aids location of the jig when clamping
13.Multi Material compatibility - Ideal for jointing in hard and softwoods and sheet materials

Dimensions:
Material thickness min.=12.7 mm
Material thickness max.=38 mm
Hole centres=21.5 mm
Drilling angle=15 degrees
