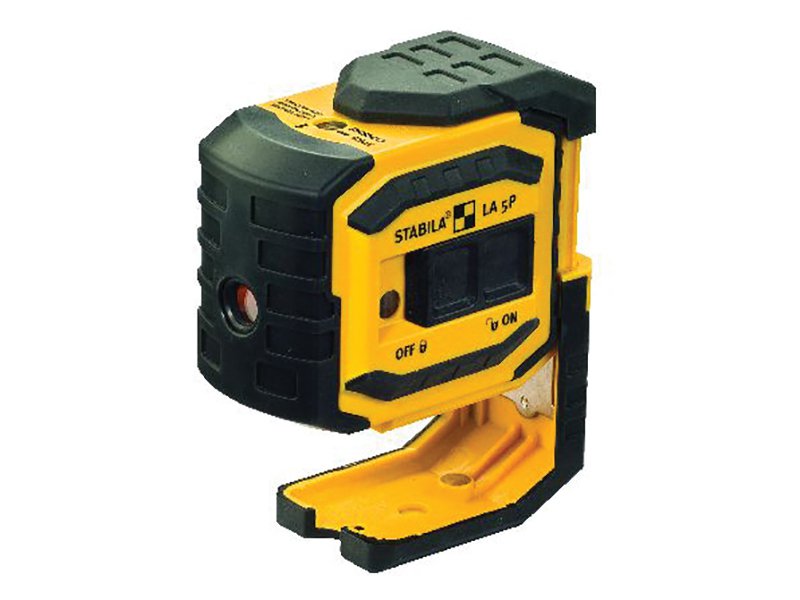

Stabila LA5P Self Levelling 5 Point Laser Level

The Stabila LA-5P Self Levelling 5 Point Laser Level is perfect for transferring 90° angles, with 3 functions, visible point range of 30m and red laser diode. The laser has 5 laser points: Upwards and downwards plumb laser with extendable foot and 3 horizontal points which form two 90° angles. Thanks to the instrument’s ability to transfer angles through 90°, more than one axis can be aligned at the same time and two right angles set out – for example for layouts used in dry-walling.

The laser can be rotated through 360° in its housing. It has a very easily distinguishable, bright, narrow laser dot, which has a visible point range of 30m. It can be used directly on the floor, attached to a tripod (1/4 inch thread), fastened to metallic objects by its rare earth magnet and V-groove or secured by the metal lugs using a strap.

The LA-5P has shock-absorbent STABILA soft-grip casing, providing excellent protection (class IP 54). It has optimal protection of the optical equipment against dust and scratches by rotation inside the U-shaped housing. An additional protective switch protects sideways horizontal points.

Ideal for the following applications:
Setting out and transferring right angles.
Transfer of the layout from the floor to the ceiling.
Both straight and curved walls.
Rapid and accurate alignment.

Specifications:
Laser class: 2.
Output: <1mW.
Laser wavelength: 635mm.
Self-levelling range: ±4.5°.
Levelling accuracy: ±0.3mm/m.
Laser beam accuracy: ±0.3mm/m.
Range of visible point: 30m.
Battery run time: 20 hours.
Batteries included: 3 x AA 1.5 Volt.
