Leica Geosystems Lino L2 Cross Line Laser

Product Code: LGSLINOL2
X
£171.95
INC VAT
ADD TO BASKET
OUT OF
STOCK
Out of stock not currently available for delivery or click and collect

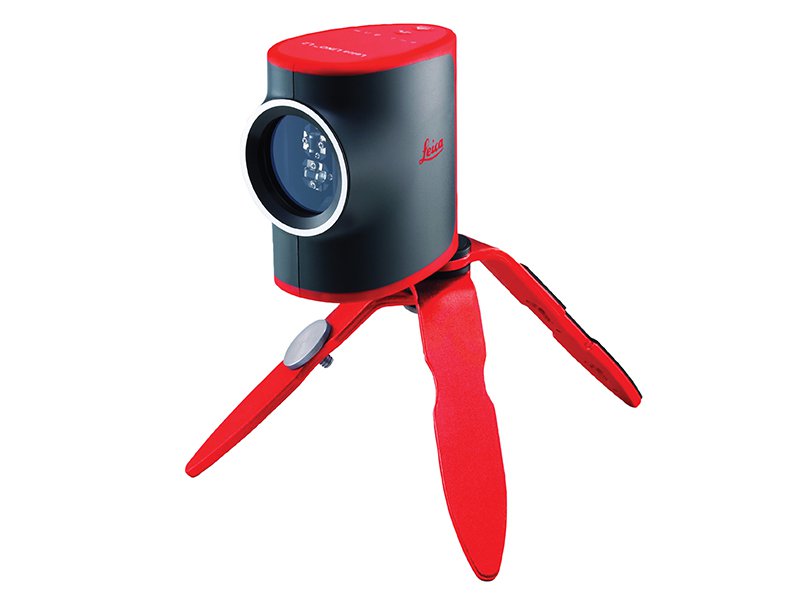

The Leica Lino L2 projects clear cross lines exactly, quickly and easily – self levelling to compensate for up-to ±4° allowing you to concentrate on the job in hand. With a simple two button operation you can switch between horizontal, vertical or cross line projection.

Pulsing line mode can be selected to increase the laser range with use of a line detector (Leica Reference LLD2) for long distance or outside operation. This also activates the power saving mode, reducing power consumption by 40%.

The laser unit incorporates a lock function which protects the unit during transport and also allows the unit to project lines at an angle by tilting the unit. You can manually switch off the self-levelling using the lock function, the laser line can then be projected at any angle.

The Leica Lino L2 is supplied with a multi-function adaptor which acts as a mini tripod, magnetic bracket or can be screwed to a wall or frame. Also included is a tripod mount for use on 5/8in site tripods.

Functions:
Horizontal, vertical or cross line modes
Pulse function with power-saving mode
Exact 90° angle

Specifications:
Range: 15m visible range / 30m with receiver.
Accuracy horizontal: ± 1.5mm @ 5m.
Accuracy vertical: ± 0.75mm @ 3m line length.
Protection Class: IP54 Dust and splash protected.
Self-levelling Range: 4° ± 0.5°.
Batteries: 3 x AA 1.5V.
Dimensions (HxDxW): 96 x 91 x 54mm.
Tripod Thread: 1/4in.

Box Contents:
1x Leica Lino L2 Line Laser
1x Target plate
1x Magnetic multifunction adaptor
1x Ball adaptor for tripod
3x Alkaline batteries
1x Carrying Pouch
