Forge Indicator Bolt - Vacant / Engaged Aluminium

Forge traditionally styled indicator bolt which allows light doors to be secured and which provides a visual reference to the outside of the door.

Supplied with all fixings and fitting instructions.

Fitting Instructions:
1. Locate the privacy bolt in the desired postion and mark both the fix holes and spindle point.
2. Drill the spindle hole using a Ø6mm drill bit and screw the latch in place with the spindle inserted.
3. Position outside component over the spindle, and fixing into postion using screws supplied.
4. Locate the keep on the door frame so that the bolt passes freely into the recess and fix using screws provided.

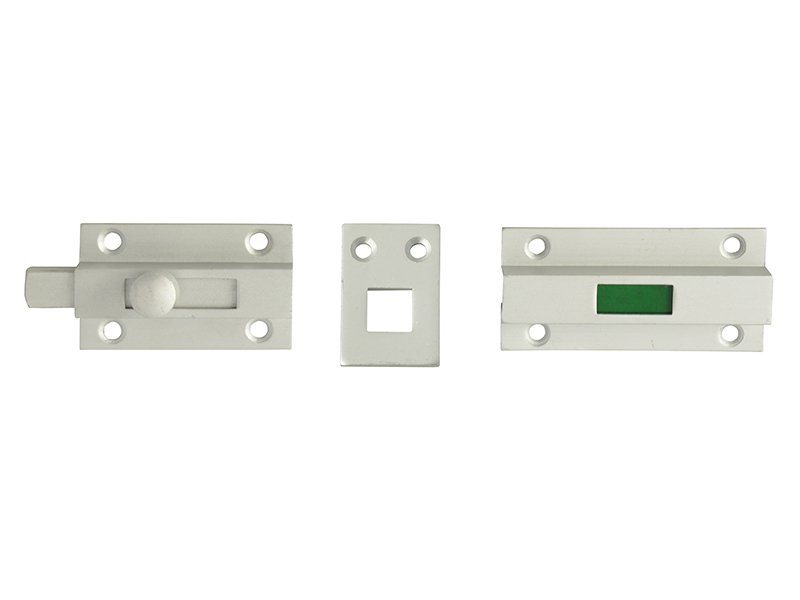

The FGEINDBOLTAL Indicator Bolt is made from aluminium with a simple green for vacant and red for engaged indicator window.

Specifications:
Bolt dimensions: 33 x 55mm
Indicator dimensions: 33 x 67mm.
